Ronde Elektrotransmissie Polen Één 40ft Container 35 van de Staalvoet Macht Pool

1 stk
MOQ
Onderhandelbaar
Prijs
Ronde Elektrotransmissie Polen Één 40ft Container 35 van de Staalvoet Macht Pool
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Type: één 40ft container 30ft Staalnut Pool en één 40ft container 35ft de elektrische pool van de staalpoo
Vorm: Ronde, Kegel
Betalingscondities: T / T, L / C
Dikte: 2.5mm16mm
gebeëindigde oppervlakte: Hete gegalvaniseerde onderdompeling
standaard: /BV/ISO9001
Markeren:

elektromachtspolen

,

elektrotransmissiepolen

Basis informatie
Plaats van herkomst: Jiangsu, china
Merknaam: Milky Way
Certificering: /BV/ISO9001
Modelnummer: Staalnut Pool
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: als verzoek van klanten
Levertijd: 10-30 ontvingen de werkdagen na uw betaling
Betalingscondities: T/T, L/C op het gezicht
Levering vermogen: 30,000 ton per maand
Productomschrijving

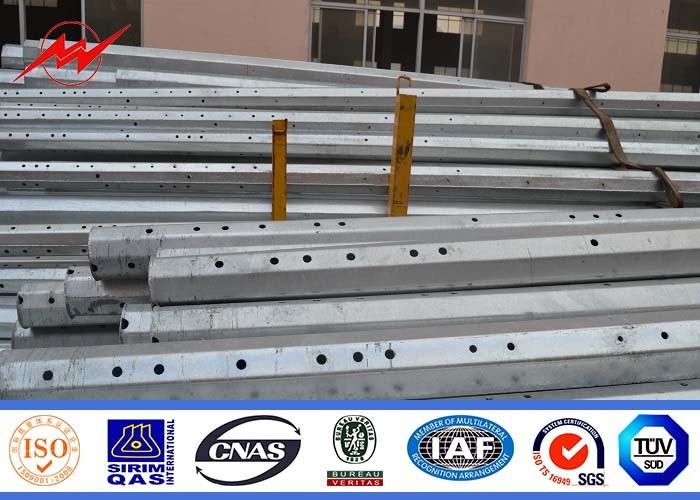

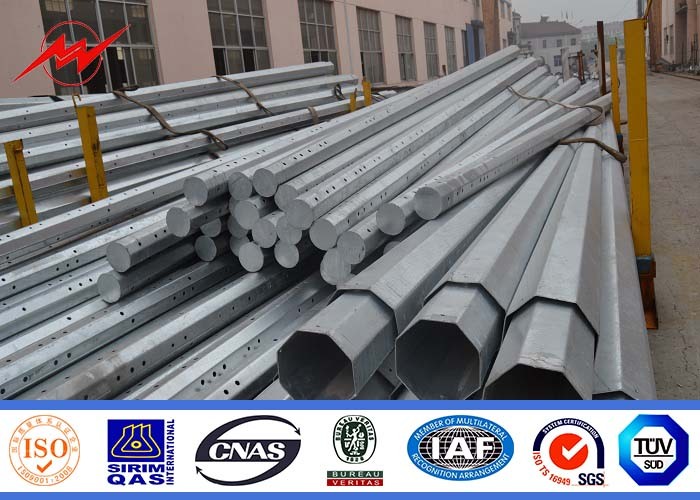

one 40ft container 30ft Steel Utility Pole and one 40ft container 35ft steel pole electric pole





Features:



 Pole’s height

All available

Type

Straight Pole ,Tensile Pole ,Turn Pole,etc

Shape of pole

Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc

Crossarm

 Single or double crossarm, dimension as per customers’ requirement

Material

Steel materials conform to ASTM A36,

Q235 equivalent to SS400, S235JO. Q345 equivalent to S355JR,Grade 50

Q460 equivalent to S460, Grade 65

 Wall thickness

≥2.5mm

Once forming

13m without joint



Welding

Welding complies with CSA and AWS, AWS D1.1 standard.

The welders have got corresponding certificate after testing and inspection.

 Joint

 Joint with insert mode, flange mode.

Base plate mounted

Base plate is square or round with slotted holes for anchor bolt and dimension as per client’s requirement.

 Galvanizing

Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 orAmerican standard ASTM A123.

Voltage

 10KV~550KV

Certificates

 ISO9001-2008 , AAA credit rating, etc

Protection

Anti-corrosion and rust free – suitable for coastal area, desert, oil field and industrial area





Packing & shipping





We use sack package the poles or straw at the pole top and bottom which is our normal package. We also use wood between the poles but cost just little higher than normal package. We normally use 40HQ container and our Port limit weight for 40HQ is 26Ton.



Ronde Elektrotransmissie Polen Één 40ft Container 35 van de Staalvoet Macht Pool 0







Our Servises:





1.Reply your inquiry in 24 working hours.



2. Experienced staffs answer all your questions in fluent English.



3. Customized design is available. UEM&UBM are welcomed.



4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.



5. Special discount and protection of sales are provided to our distributor.



6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years, competitive with good quantity.



 7 Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.



8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
