Thuis /Producten/Nutsmacht Polen/Het achthoekige Ronde Nut Polen van het Sectiestaal 14m 2.5KN met Galvanisatie ASTM A 123

Het achthoekige Ronde Nut Polen van het Sectiestaal 14m 2.5KN met Galvanisatie ASTM A 123

1 stk
MOQ
Onderhandelbaar
Prijs
Het achthoekige Ronde Nut Polen van het Sectiestaal 14m 2.5KN met Galvanisatie ASTM A 123
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Naam van het product: Staalnut Pool
Toepassing: Tranmissionlijn
Design: Op maat
Oppervlaktebehandeling: Hete onderdompelingsgalvanisatie
Lassennorm: AWS D1.1
Galvanisatiedikte: Gemiddelde 86um
Materiaal: Q345
Markeren:

elektrotransmissiepolen

,

hoogspanningspool
Basis informatie
Plaats van herkomst: China
Merknaam: MilkyWay
Certificering: ISO9001/BV/
Modelnummer: Staalnut Pool
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Als Customer Request
Levertijd: 20 ontvingen de werkdagen na uw betaling
Betalingscondities: T/T, L/C op het gezicht
Levering vermogen: 300pcs per dag
Productomschrijving

Octagonal Round Section Galvanized Steel Utility Poles 14m 2.5KN With Galvanization ASTM A 123





 Specifications:



Suit for    Octagonal Round Section Galvanized Steel Utility Poles 14m 2.5KN With Galvanization ASTM A 123
Shape Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-
Torlance of the dimenstion +- 2%
Power 10 KV ~550 KV
Safety Factor Safety factor for conducting wine : 8
Safety factor for grounding wine : 8
Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Marks Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required
Joint of Poles Insert mode,innerflange mode,face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour . 30 m /s
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 490 mpa
Max ultimate tensile strength 620 mpa
Standard ISO 9001
Length of per section Within 14m once forming without slip joint
Welding We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness 1 mm to 30 mm
Production Process Rew material test → Cuttingj →Molding or bending →
Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages

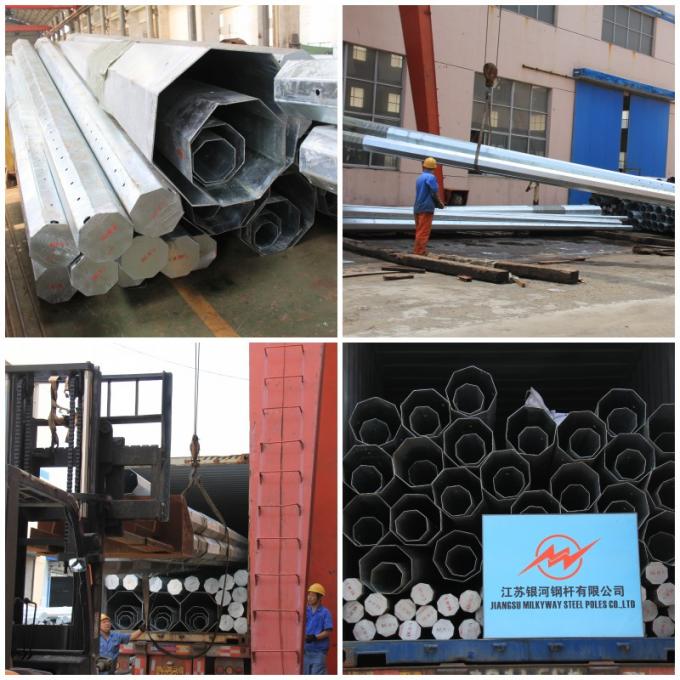

Packages Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data







 Descripition of material:
 1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped  vertical steel barwith hot galvanized anti-corrosion treatment
 2. Light plate frame is made by high-quality stainless steel
 3. Fastened bolts and nuts of stainless steel

 Het achthoekige Ronde Nut Polen van het Sectiestaal 14m 2.5KN met Galvanisatie ASTM A 123 0



 Production Process

 Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding  →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting  →Recalibration →Packages

 Het achthoekige Ronde Nut Polen van het Sectiestaal 14m 2.5KN met Galvanisatie ASTM A 123 1





 Company History

 JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu  Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200  million . We have 20 years experience in design and  production. Our main products are power pole,  communication towers, street lighting poles, steel bracket and so on. The company has strong technical  force, advanced production equipment, perfect quality management system, product quality has reached  international advanced level.

 Het achthoekige Ronde Nut Polen van het Sectiestaal 14m 2.5KN met Galvanisatie ASTM A 123 2
